Figure below shows part of a hydraulic press. The plunger is the position where effort is applied while the Ram piston is the position where load is applied. The plunger has cross-section area, a m2 while the Ram piston has cross section area, a m2.

When the plunger moves down a distance d the Ram piston moves up a distance D.
(i) State the property of liquid pressure on which the working of the hydraulic press works.
(ii) Derive an impression for the velocity ratio (V.R) in terms of A and a.



Answers


Wilfred
(i) Pressure in liquids is transmitted equally throughout the liquid

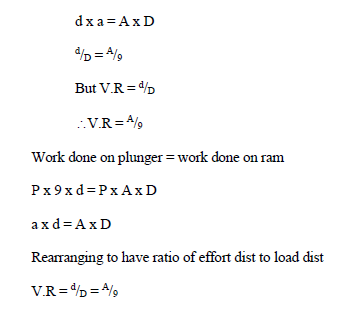

(ii) Volume of the oil displace by plunger = volume received by ram
Wilfykil answered the question on March 27, 2019 at 12:28
