The figure below represents a bimetallic strip of metals X and Y at room temperature.

The figure below represents a bimetallic strip of metals X and Y at room temperature.

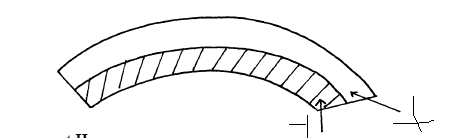

The figure below shows its shape when dipped into crushed ice

Sketch a diagram in the space given below to show the shape when the strip is heated to a
temperature above the room temperature

---

---
