Study the circuit diagram shown below.



Study the circuit diagram shown below.
(i) Determine the reading of the voltmeter V.
(ii) Determine the reading of the ammeter A.
(iii) Explain the effect on the reading of the voltmeter if the 3ohms resistor is altered to be 6ohms

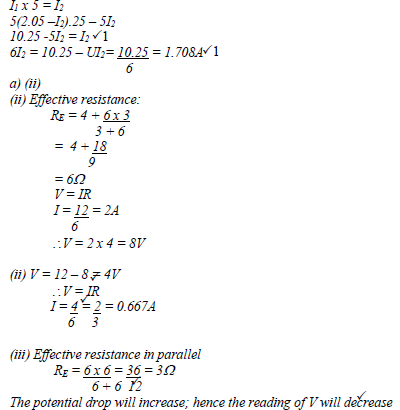

Answers
