Figure below shows a diagram of an n – p – n transistor.



Figure below shows a diagram of an n – p – n transistor.

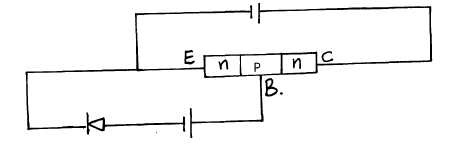

Complete the diagram by showing the connections of two batteries suitable for biasing the
transistor in the common- emitter mode.



Answers


sharon
sharon kalunda answered the question on April 5, 2019 at 12:33
