Describe an experiment to show viscosity in fluids.

Describe an experiment to show viscosity in fluids.

Answers

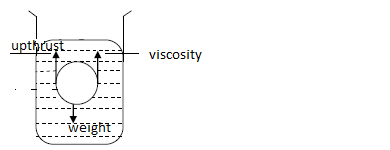

Friction exerted by fluids is called viscosity or viscous drag. It is the force which opposes relative motion between layers of the fluid. Viscosity is caused by the forces of attraction between the molecules of the fluid. When a body is put in a fluid, three forces act on it, namely:
- Weight of the body which acts downwards.
- Upthrust due to the fluid which acts upwards.
- Viscous drag due to the fluid which acts upwards.

When the body enters the fluid, its weight is initially higher than the total upward forces i.e. upthrust plus viscous drag. The resultant force acting on the body accelerates it towards the bottom of the container. As the body sinks down, the viscous drag increases until the three forces balance i.e. W= U+ F. at this point, the body attains its maximum constant velocity called terminal velocity. The resultant force on the body is therefore zero.

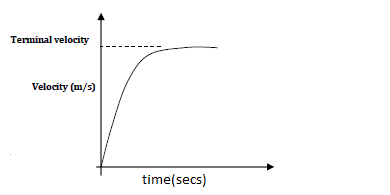

The graph of velocity against time for a body falling through a fluid appears as shown below:

Note that viscosity decreases with increase in temperature.

---

sharon kalunda answered the question on April 24, 2019 at 06:34
