Describe an experiment that can be used to verify the Boyle’s law

Describe an experiment that can be used to verify the Boyle’s law

Answers

In this law, temperature of the gas is kept constant. Boyle’s law states: the pressure of a fixed mass of a gas is inversely proportional to the volume, provided temperature is constant.
Pa1/V
P=k/V
PV= constant.

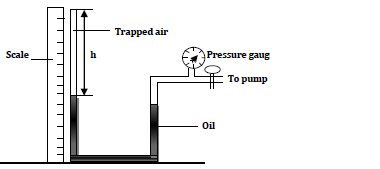

When pressure is exerted on the oil, the trapped gas (usually air) is compressed and the column h reduces. The pressure is measured using the pressure gauge. Since the cross-section area of the glass tube is uniform, the column h can be taken to represent the volume of the trapped gas (air).
Several values of pressure, P and volume, h are collected and recorded.

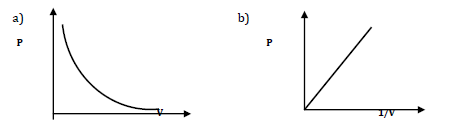

A graph of pressure against volume is a curve as shown in (a) below:

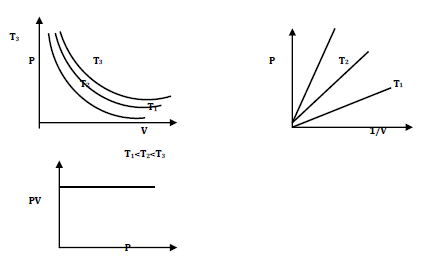

A graph of P against 1/V is a straight line through the origin as shown in (b) above while a graph of PV against P is a straight line parallel to the x-axis. If the experiment is repeated at different temperatures, similar curves to the above will be obtained. This is shown below:

Hence for a given mass of a gas, P1V1 = P2V2

---
