The figure above shows the structure of a building under construction.



The figure above shows the structure of a building under construction. HA = IB = JC = ED = 12m and BC = AD = IJ =
HE 16m; and AB = DC = HI = EJ = 10m and HG = IG = FJ = FE = 7m and GF = 9m.
Calculate:
(a) the angle face GHI makes with base ABCD.
(b) vertical height of ridge GF above base ABCD.
(c) angle face GFJI makes with ABCD.
(d) M is midpoint of AB. What is the projection of MF to the base ABCD?

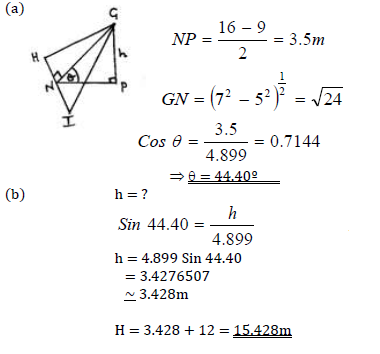

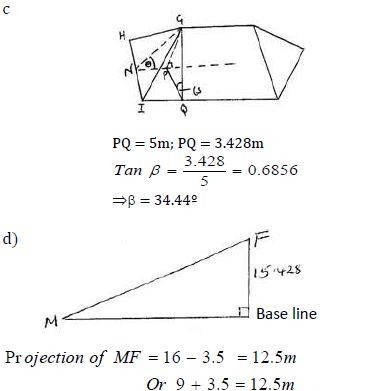

Answers


sharon
sharon kalunda answered the question on April 25, 2019 at 11:33
