Under a shear with x-axis invariant a square with vertices A(1,0), B(3,0), C(3,2) and D(1,2) is mapped onto a parallelogram with vertices A1(1,0) B1(3,0), C1(7,2) and...

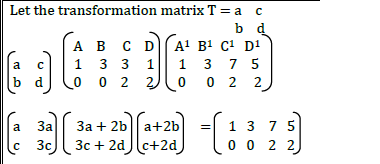

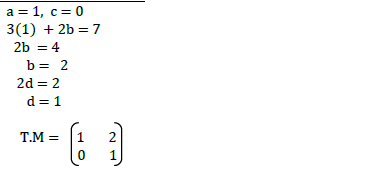

Under a shear with x-axis invariant a square with vertices A(1,0), B(3,0), C(3,2) and D(1,2) is mapped onto a
parallelogram with vertices A1(1,0) B1(3,0), C1(7,2) and D1(5,2). Find the shear matrix.



Answers


sharon
sharon kalunda answered the question on May 6, 2019 at 06:00
