When storing a pair of bar magnets, it is advisable to put a keeper at each end.
a) Draw a diagram in the space below to show the above arrangement and label the poles of each magnet.
b) Explain briefly how the above arrangement can minimize the loss of magnetism in the bar magnets.



Answers


sharon

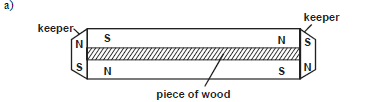

Unlike poles of the magnets facing same direction and one keeper at each end.
b) The keeper in contact with a South pole of the magnet acquires a North pole while that in contact with a North pole
acquires a South pole so that the dipoles in the magnet and the keepers form complete loops hence dipoles retain their
orientation.
sharon kalunda answered the question on May 29, 2019 at 12:09
