The figure below shows a log of wood 2m long lying on a flat ground. Two forces F1 and F2 applied at the ends of...



The figure below shows a log of wood 2m long lying on a flat ground. Two forces F1 and F2 applied at the ends of the log will
just lift the log while maintaining horizontal position.
Determine :
a) the weight of the log.
b) the perpendicular distance from the centre of gravity of the log to force F2

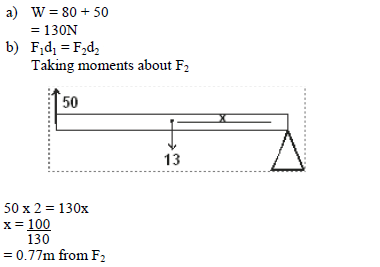

Answers


sharon
sharon kalunda answered the question on May 30, 2019 at 06:02
