The figure below shows two circles centres A and B and radii 6 cm and 8 cm respectively. The circles intersect at P and Q. Angle...



The figure below shows two circles centres A and B and radii 6 cm and 8 cm respectively. The
circles intersect at P and Q. Angle PAB = 420 and angle ABQ = 300.
(a) Find the size of ∠PAQ and PBQ.
(b) Calculate, to one decimal place the area of:
(i) Sector APQ and PBQ.
(ii) Triangle APQ and PBQ.
(iii) The shaded area (take π 22)

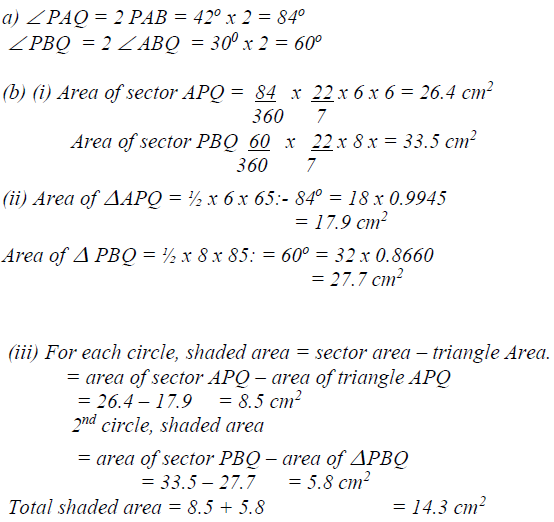

Answers


Kavungya
Kavungya answered the question on June 19, 2019 at 12:51
