The figure below shows two intersecting circles radii 8 cm and 6 cm respectively. The common chord AB = 9cm ad P and Q are the...

The figure below shows two intersecting circles radii 8 cm and 6 cm respectively.
The common chord AB = 9cm ad P and Q are the centres as shown:

(a) Calculate the size of angles:-
(i) APB
(ii) AQB
(b) Calculate the area of the shaded region

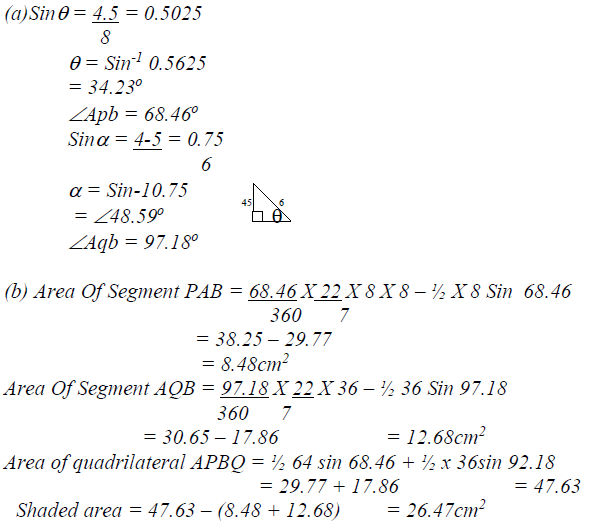

Answers

Kavungya answered the question on June 19, 2019 at 14:08

Next: In the figure below ABC is a tangent to the circle at B. given that
Previous: The figure O and P are centres of two intersecting circles. ABE is tangent to circle BCD at B angle BCD is 42^o (a) Giving reasons for...

View More Mathematics Questions and Answers | Return to Questions Index
