Two circles with centres O₁ and O₂, have radii 7cm and 6cm respectively.

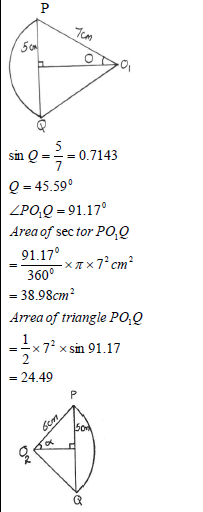

Two circles with centres O₁ and O₂, have radii 7cm and 6cm respectively. The two circles intersect at P and Q and the length of the common chord PQ is 10cm.

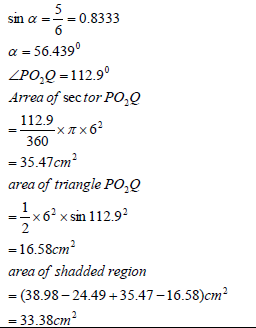

Calculate the area of the shaded region in the above diagram to 4 significant figures.

Answers

Wilfykil answered the question on August 13, 2019 at 05:19

Answer Attachments
