In the figure below (not drawn to scale) OABC is a parallelogram. AB is produced to T such that AB:BT = 3 : 1 and OA...

In the figure below (not drawn to scale) OABC is a parallelogram. AB is produced to T such that AB:BT = 3 : 1 and OA is produced to R such that OA : OR = 3 : 5. Given that OA = a and OC = c;

Express in terms of a and c vectors.
a) AC
b) CR
c) AT
d) CT
e) RT

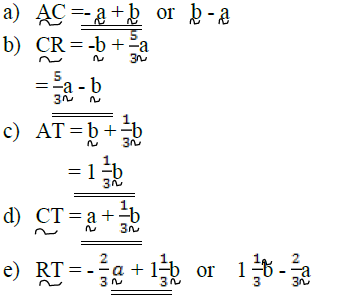

Answers

sharon kalunda answered the question on August 13, 2019 at 13:48

Answer Attachments

Next: Town Q is 180km on bearing of 050^o from town P. Another town R is on a bearing 110^o from P and also on compass...

Previous: In an experiment, some germinating seeds were placed in a large air tight flask and left for 3 days.

View more Mathematics Questions and Answers | Return to Questions Index

Exams With Marking Schemes

Related Questions

Town Q is 180km on bearing of 050^o from town P. Another town R is on a bearing 110^o from P and also on compass... (Solved)

Town Q is 180km on bearing of 050^o from town P. Another town R is on a bearing 110^o from P and also on compass bearing S 30^oE from Q. Town S is South of P and also West of R
Using scale 1 cm rep. 20 km;
a) Draw the scale diagram to show the positions of the four towns.
b) Use your scale diagram in (a) above to find;
i) The distance of R from P.
ii) The bearing of Q from S.
iii) The distance of Q from S.
iv) How far P is North of S.

Date posted: August 13, 2019 . Answers (1)
Two friends Jane and Tom live 40km apart. One day Jane left her house at 9.00am and cycled towards Tom’s house at an average speed... (Solved)

Two friends Jane and Tom live 40km apart. One day Jane left her house at 9.00am and cycled towards Tom’s house at an average speed of 15km/hr. Tom left at 10.30am on the same day and cycled towards Jane’s house at an average speed of 25km/hr.
a) Determine;
i) The distance from Jane’s house, where the two friends met.
ii) The time they met.
iii) How far Jane was from Tom’s house when they met?
b) The two friends took 10 minutes at the meeting point and they cycled to Tom’s house at an average speed of 12km/hr. Find the time they arrived at Tom’s house.

Date posted: August 13, 2019 . Answers (1)
The figure below shows a glass in form of a frustrum of a cone whose top and bottom diameter of 7cm and 3.5cm respectively. Its depth... (Solved)

The figure below shows a glass in form of a frustrum of a cone whose top and bottom diameter of 7cm and 3.5cm respectively. Its depth is 10cm.

Calculate;
a) Its total surface area.
b) Its capacity.

Date posted: August 13, 2019 . Answers (1)
Determine the obtuse angle made by line 3x – 2y = 6 and x-axis. (Solved)

Determine the obtuse angle made by line 3x – 2y = 6 and x-axis.

Date posted: August 13, 2019 . Answers (1)
Solve for x in the logarithm equation. log (3x – 4) – log (3 – x) = 1 (Solved)

Solve for x in the logarithm equation.
log (3x – 4) – log (3 – x) = 1

Date posted: August 13, 2019 . Answers (1)
A positive two digit number is such that the product of the digits is 24. When the digits are reversed, the number formed is greater... (Solved)

A positive two digit number is such that the product of the digits is 24. When the digits are reversed, the number formed is greater than original number by 18. Find the number.

Date posted: August 13, 2019 . Answers (1)
The surface area of two cylindrical water tanks are 50m² and 162m² respectively. Given that the volume of water in the second tank is 36450m³,... (Solved)

The surface area of two cylindrical water tanks are 50m² and 162m² respectively. Given that the volume of water in the second tank is 36450m³, find the volume of water in the first tank if it’s half full.

Date posted: August 13, 2019 . Answers (1)
A line passing through points P (4, a) and Q (3, 2) is perpendicular to the line 3y + x + 3 = 0. Find... (Solved)

A line passing through points P (4, a) and Q (3, 2) is perpendicular to the line 3y + x + 3 = 0. Find the value of a and write down equation of line PQ.

Date posted: August 13, 2019 . Answers (1)
A matatu left town A at 7.00 a.m and travelled towards a town B at an average speed of 60km/h. A second matatu left town B... (Solved)

A matatu left town A at 7.00 a.m and travelled towards a town B at an average speed of 60km/h.
A second matatu left town B at 8.00 a.m and travelled towards town A at an average 60 km/h. If the distance between the two towns is 400 km, find:
a) The time at which the two matatus met.
b) The distance of the meeting point from town A.

Date posted: August 13, 2019 . Answers (1)
The figure below shows a circle centre O. PQRS is a cyclic quadrilateral and QOS is a straight line. Giving reasons for your answers, find the... (Solved)

The figure below shows a circle centre O. PQRS is a cyclic quadrilateral and QOS is a straight line.

Giving reasons for your answers, find the value of:
a) b) c) d) e) Reflex
Date posted: August 13, 2019 . Answers (1)
A motorist is to follow the route ABCD. B is 250 km from A on a bearing of N75⁰E from A. C is on a... (Solved)

A motorist is to follow the route ABCD. B is 250 km from A on a bearing of N75⁰E from A. C is on a bearing of S75⁰E from A and 275 km from B. D is 300 m on a bearing of S80⁰E from B. Using a scale of 1 cm to represent 50 km;
a) Show the relative position of ABCD.
b) Determine:
i) The distance of A from C
ii) The bearing of B from C
iii) The distance of A from D
iv) The compass bearing of C from D

Date posted: August 13, 2019 . Answers (1)
The figure below shows the net of a regular rectangular based pyramid. The rectangle measures 18 cm by 15 cm. N and K are mid-points... (Solved)

The figure below shows the net of a regular rectangular based pyramid. The rectangle measures 18 cm by 15 cm. N and K are mid-points of AD and BC respectively. AB=18 cm and BC= 15 cm while VK=16 cm. V is the vertex and O is the centre of the rectangle ABCD.

a).Sketch the pyramid and label all the vertices
b) From the diagram in (a) above, calculate to 2 decimal places.
i) Length CV
ii) Length VO
iii) The angle between the plane VCB and the base ABCD.
iv) The angle between the plane BVC and AVD

Date posted: August 13, 2019 . Answers (1)
a) Use the trapezium rule with 5 strips to estimate the area enclosed by the curve, the x-axisand the lines x=-2 and x=3 of the... (Solved)

a) Use the trapezium rule with 5 strips to estimate the area enclosed by the curve, the x-axis and the lines x=-2 and x=3 of the curve y=x²+x+9.
b) Find the exact area bounded by the curve, the x-axis and the line x=-2 and x=3.
c) Find the percentage error in your workings.

Date posted: August 13, 2019 . Answers (1)
A self help group of 10 young men invested Shs 72,000 in two companies A and B. A pays a dividend of 22.5% while B... (Solved)

A self help group of 10 young men invested Shs 72,000 in two companies A and B. A pays a dividend of 22.5% while B pays a dividend of 21%. If from their total investment they obtained a return of 21.5%, how much money did they invest in each company?

Date posted: August 13, 2019 . Answers (1)
A triangle PQR has a height of x cm and a base of(x+3) cm. if its area is 5 cm², calculate the height of its... (Solved)

A triangle PQR has a height of x cm and a base of(x+3) cm. if its area is 5 cm², calculate the height of its base.

Date posted: August 13, 2019 . Answers (1)
Solve the following simultaneous equations using matrix Method. (Solved)

Solve the following simultaneous equations using matrix Method.
4a+3b=120
2a+5b=130

Date posted: August 13, 2019 . Answers (1)
The total marks scored in a test by 6 pupils was 420. If the mean mark for the first 5 pupils was 68. (Solved)

The total marks scored in a test by 6 pupils was 420. If the mean mark for the first 5 pupils was 68, find the marks scored by the sixth pupil.

Date posted: August 13, 2019 . Answers (1)
The perimeter of a triangular field is 120 M. Two of the sides are 21m and 40m. calculate the largest angle of the field hence... (Solved)

The perimeter of a triangular field is 120 M. Two of the sides are 21m and 40m. calculate the largest angle of the field hence find the area of the field.

Date posted: August 13, 2019 . Answers (1)
Given that point A(2,4) and B(8, -4) , find the equation of the perpendicular bisector of line AB. (Solved)

Given that point A(2,4) and B(8, -4) , find the equation of the perpendicular bisector of line AB.

Date posted: August 13, 2019 . Answers (1)
In the figure below, 0 is the centre of the circle. PQ and PR are tangents to the circle at P and R respectively Angle... (Solved)

In the figure below, 0 is the centre of the circle. PQ and PR are tangents to the circle at P and R respectively Angle PQS = 40⁰ and angle PRS 30° RTU is a straight line.

Find with reasons the angles
i) QRS
ii) RTQ
iii) RPQ
iv) Reflex angle QOR
v) TRO given that TR =TQ

Date posted: August 13, 2019 . Answers (1)
