An a.c. voltage of peak value 20 V is connected in series with a silicon diode and load resistance of 500 O.



An a.c. voltage of peak value 20 V is connected in series with a silicon diode and load resistance of 500 Ω. If the forward resistance of diode is 10 Ω, find:

(i) peak current through diode
(ii) peak output voltage. What will be these values if the diode is assumed to be ideal ?

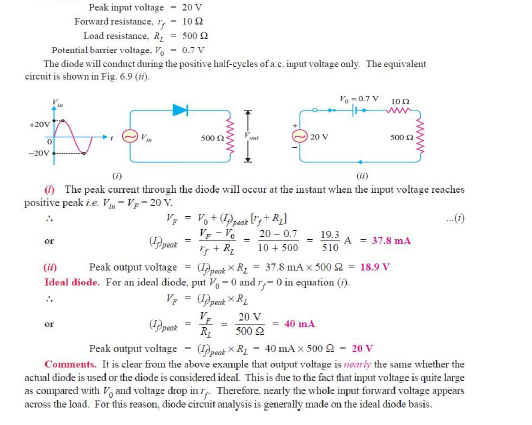

Answers

---

---

Wilfykil answered the question on August 14, 2019 at 07:10
