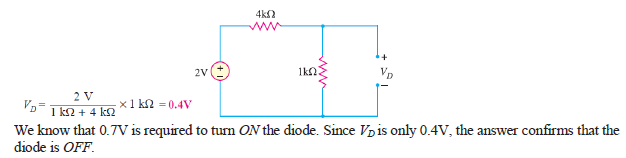

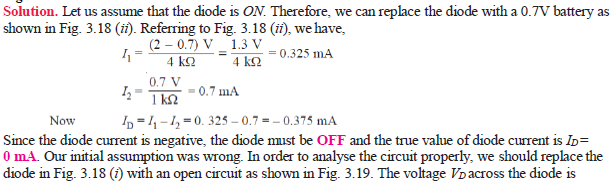

Determine the state of diode for the circuit shown in Fig. 3.18 (i) and find I_D and V_D. Assume simplified model for the diode.



Determine the state of diode for the circuit shown in Fig. 3.18 (i) and find I_D and V_D. Assume simplified model for the diode.



Answers

---

---

Wilfykil answered the question on August 14, 2019 at 09:13
