For the circuit shown in Fig. 3.61 (i), find:



For the circuit shown in Fig. 3.61 (i), find:
(i) the output voltage
(ii) the voltage drop across series resistance
(iii) the current through Zener diode.

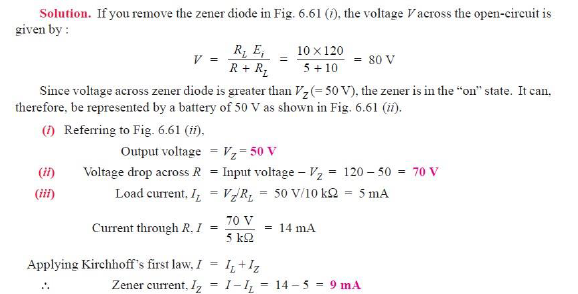

Answers

---

---
