For the circuit shown in Fig. 3.62 (i), find the maximum and minimum values of Zener diode current.

For the circuit shown in Fig. 3.62 (i), find the maximum and minimum values of Zener diode current.

Answers

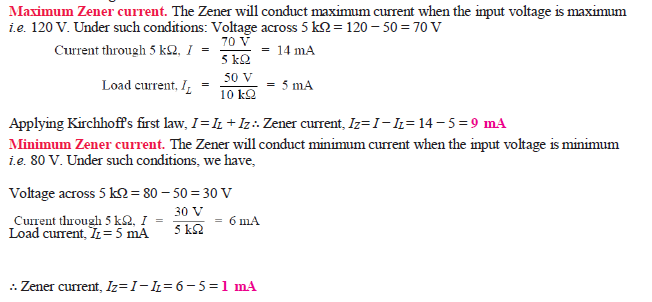

- The first step is to determine the state of the Zener diode. It is easy to see that for the given range of voltages (80 - 120 V), the voltage across the Zener is greater than VZ (= 50 V). Hence the Zener diode will be in the ?on? state for this range of applied voltages. Consequently, it can be replaced by a battery of 50 V as shown in Fig. 3.62 (ii).

---

Wilfykil answered the question on August 14, 2019 at 09:42
