A 7.2 V Zener is used in the circuit shown in Fig. 3.63 and the load current is to vary from 12 to 100 mA.



A 7.2 V Zener is used in the circuit shown in Fig. 3.63 and the load current is to vary from 12 to 100 mA. Find the value of series resistance R to maintain a voltage of 7.2 V across the load. The input voltage is constant at 12V and the minimum Zener current is 10 mA.



Answers

---

---

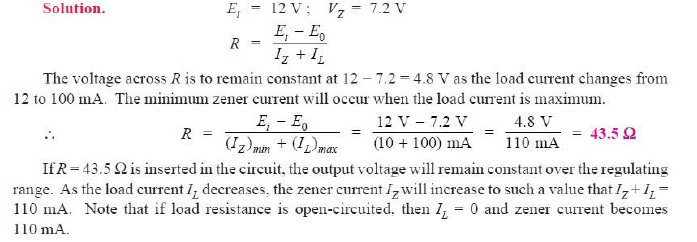

Wilfykil answered the question on August 14, 2019 at 09:45
