What value of series resistance is required when three 10-watt, 10-volt, 1000 mA Zener diodes are connected in series to obtain a 30-volt regulated output...



What value of series resistance is required when three 10-watt, 10-volt, 1000 mA Zener diodes are connected in series to obtain a 30-volt regulated output from a 45 volt d.c. power source ?



Answers

---

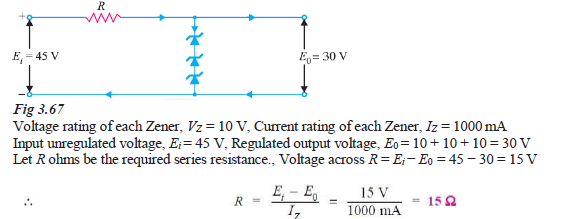

- Fig. 3.67 shows the desired circuit. The worst case is at no load because then Zeners carry the maximum current.

---

Wilfykil answered the question on August 14, 2019 at 10:03
