For a transistor, ß = 45 and voltage drop across 1 kilo-ohm which is connected in the collector circuit is 1 volt.



For a transistor, β = 45 and voltage drop across 1 kilo-ohm which is connected in the collector circuit is 1 volt. Find the base current for common emitter connection.



Answers

---

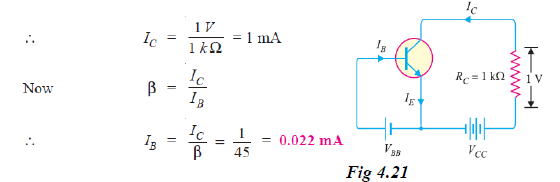

- Fig. 4.21 shows the required common emitter connection. The voltage drop across RC (= 1 kilo-ohm) is 1 volt.

---

Wilfykil answered the question on August 14, 2019 at 13:24
