Explain Transistor as an Amplifier in CE Arrangement



Explain Transistor as an Amplifier in CE Arrangement



Answers


Wilfred

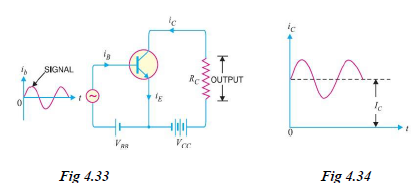

- Fig. 4.33 shows the common emitter npn amplifier circuit. Note that a battery VBB is connected in the input circuit in addition to the signal voltage. This d.c. voltage is known as bias voltage and its magnitude is such that it always keeps the emitter-base junction forward biased regardless of the polarity of the signal source.
- Operation: During the positive half-cycle of the signal, the forward bias across the emitter-base junction is increased. Therefore, more electrons flow from the emitter to the collector via the base.
- This causes an increase in collector current. The increased collector current produces a greater voltage drop across the collector load resistance RC. However, during the negative half-cycle of the signal, the forward bias across emitter-base junction is decreased. Therefore, collector current decreases.
- This results in the decreased output voltage (in the opposite direction). Hence, an amplified output is obtained across the load.

- Analysis of collector currents: When no signal is applied, the input circuit is forward biased by the battery VBB. Therefore, a d.c. collector current IC flows in the collector circuit. This is called zero signal collector current. When the signal voltage is applied, the forward bias on the emitter base junction increases or decreases depending upon whether the signal is positive or negative. During the positive half-cycle of the signal, the forward bias on emitter-base junction is increased, causing total collector current iC to increase. Reverse will happen for the negative half-cycle of the signal.
- Fig. 4.34 shows the graph of total collector current iC versus time. From the graph, it is clear that total collector current consists of two components, namely;
(i) The d.c. collector current IC (zero signal collector current) due to bias battery VBB. This is the current that flows in the collector in the absence of signal.
(ii) The a.c. collector current ic due to signal.
therefore Total collector current, iC = ic + IC

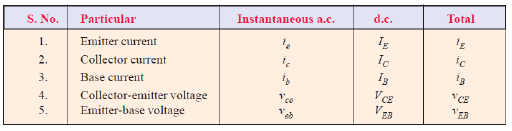

- The useful output is the voltage drop across collector load RC due to the a.c. component ic. The purpose of zero signal collector current is to ensure that the emitter-base junction is forward biased at all times. The table below gives the symbols usually employed for currents and voltages in transistor applications
Wilfykil answered the question on August 15, 2019 at 05:54
