For a single stage transistor amplifier, the collector load is R_C = 2 kilo-ohms and the input resistance R_i = 1 kilo-ohm. If the current...



For a single stage transistor amplifier, the collector load is R_C = 2 kilo-ohms and the input resistance R_i = 1 kilo-ohm. If the current gain is 50, calculate the voltage gain of the amplifier.



Answers

---

---

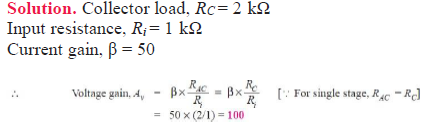

Wilfykil answered the question on August 15, 2019 at 08:07
