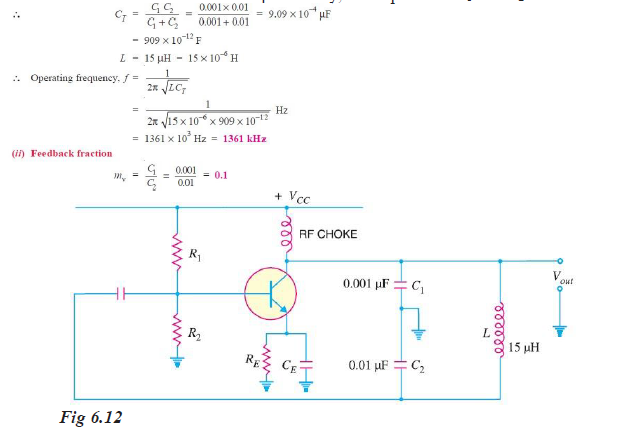

Determine the (i) operating frequency and (ii) feedback fraction for Collpitt’s oscillator shown in Fig. 6.12.

Answers

- (i) Operating Frequency. The operating frequency of the circuit is always equal to the resonant frequency of the feedback network. As noted previously, the capacitors C₁ and C₂ are in series.

Wilfykil answered the question on August 15, 2019 at 12:37

Answer Attachments

Next: Add question tags to the following statements.

Previous: A 1 mH inductor is available. Choose the capacitor values in a Collpitt’s oscillator so that f = 1 MHz and mv = 0.25.

View more Electronics Questions and Answers | Return to Questions Index
