A 1 mH inductor is available. Choose the capacitor values in a Collpitt’s oscillator so that f = 1 MHz and mv = 0.25.



A 1 mH inductor is available. Choose the capacitor values in a Collpitt’s oscillator so that f = 1 MHz and mv = 0.25.



Answers

---

---

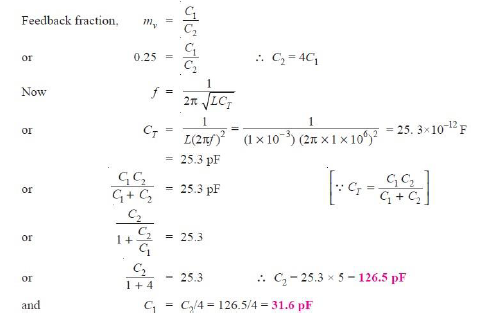

Wilfykil answered the question on August 15, 2019 at 12:39

Next: Determine the (i) operating frequency and (ii) feedback fraction for Collpitt’s oscillator shown in Fig. 6.12.
Previous: Akukuranut women group decided to raise sh.126,000 towards a poultry farming project. Each woman was to contribute equal amount. Before the contributions, 7 of them pulled...

View More Electronics Questions and Answers | Return to Questions Index
