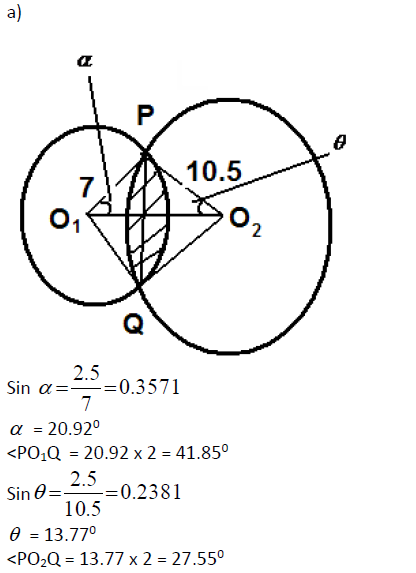

The diagram below shows a cross section of an oil pipeline centre O and radius 14 cm. The pipe constitutes two other smaller pipes centres O1 and O2 with radii 7 cm and 10.5 cm respectively.Oil flows through this smaller pipes. The pipes with centre O1 and O2 intersect at P and Q.

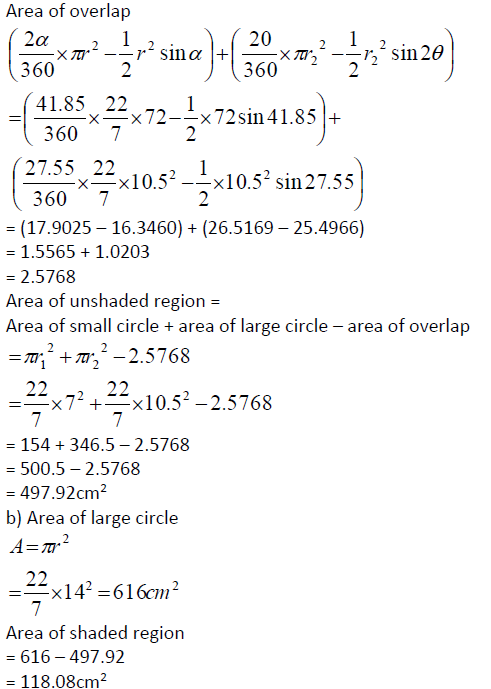

(a) Find the area of the un shaded region if PQ = 5 cm
(b) Find the area of the shaded region.



Answers


sharon
sharon kalunda answered the question on August 15, 2019 at 13:03
