In the Wien bridge oscillator shown in Fig. 6.18, R₁ = R₂ = 220 kilo-ohms and C₁ = C₂ = 250 pF.



In the Wien bridge oscillator shown in Fig. 6.18, R₁ = R₂ = 220 kilo-ohms and C₁ = C₂ = 250 pF. Determine the frequency of oscillations.



Answers

---

---

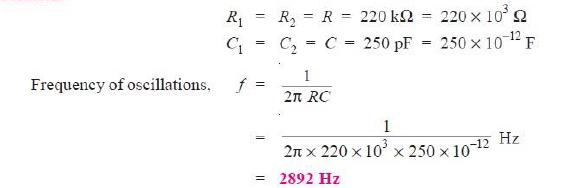

Wilfykil answered the question on August 15, 2019 at 13:05
