An OP-amp has a gain-bandwidth product of 15 MHz. Determine the bandwidth of OP- amp when A_CL = 500. Also find the maximum value of...

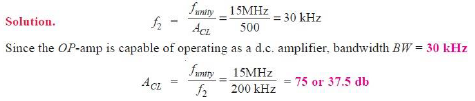

An OP-amp has a gain-bandwidth product of 15 MHz. Determine the bandwidth of OP- amp when A_CL = 500. Also find the maximum value of A_CL when f₂ = 200 kHz.



Answers

---

---

Wilfykil answered the question on August 16, 2019 at 08:55

Next: Explain the Output Voltage from OP-Amp
Previous: An OP-amp has a gain-bandwidth product of 1.5 MHz.

View More Electronics Questions and Answers | Return to Questions Index
