An OP-amp has a gain-bandwidth product of 1.5 MHz.

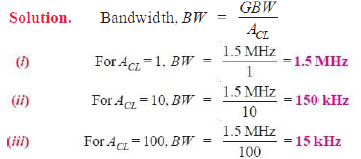

An OP-amp has a gain-bandwidth product of 1.5 MHz. Find the operating bandwidth for the following closed-loop gains (i) A_CL = 1 (ii) A_CL = 10 (iii) A_CL = 100.



Answers

---

---

Wilfykil answered the question on August 16, 2019 at 08:58

Next: An OP-amp has a gain-bandwidth product of 15 MHz. Determine the bandwidth of OP- amp when A_CL = 500. Also find the maximum value of...
Previous: What is the definition of Slew Rate?

View More Electronics Questions and Answers | Return to Questions Index
