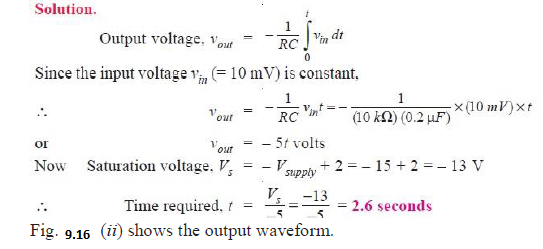

For the integrator circuit shown in Fig. 9.16 (i), how long does it take for the output to reach saturation?



For the integrator circuit shown in Fig. 9.16 (i), how long does it take for the output to reach saturation?



Answers

---

---

Wilfykil answered the question on August 16, 2019 at 12:14

Next: Determine the rate of change of the output voltage in response to a single pulse input to the integrator circuit shown in Fig. 9.15 (i).
