Fig. 9.19 (i) shows the square wave input to a differentiator circuit. Find the output voltage if input goes from 0V to 5V in 0.1...



Fig. 9.19 (i) shows the square wave input to a differentiator circuit. Find the output voltage if input goes from 0V to 5V in 0.1 ms.



Answers

---

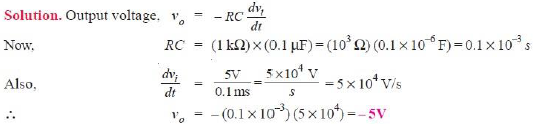

- The signal quickly returns to zero as the input signal becomes constant. The output will be as shown in Fig. 9.19 (ii).

---

Wilfykil answered the question on August 16, 2019 at 12:26
