A ship B is on bearing of 080⁰ from port A and at a distance of 95km.

A ship B is on bearing of 080⁰ from port A and at a distance of 95km. Another ship is stationed at port D which is on a bearing of 200⁰ from A and a distance of 124km from B. A ship leaves B and moves directly to island P which is on a bearing of 140⁰ from A.

(a) Using a scale of 1cm to represent 10km, make a scale drawing to show the relative positions of A, B, D and P.
(b) Hence find:-
(i) The distance from A to D.
(ii) The bearing of D from B.
(iii) The bearing of P from D.
(iv) The distance from P to D.

Answers

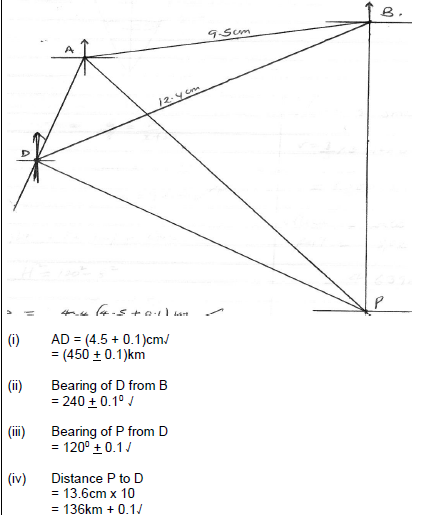

1cm rep 10km

Wilfykil answered the question on August 19, 2019 at 12:15

Answer Attachments

Next: State the level of production for each of the following activities

Previous: Onyango and Juma live 200km apart. One day, Onyango left his house at 7.00am

View more Mathematics Questions and Answers | Return to Questions Index

Exams With Marking Schemes

Related Questions

Using a ruler and a pair of compasses only, construct a triangle ABC such that AB=6cm; BC= 7cm and ?ABC = 76½^o. Locate the region... (Solved)

Using a ruler and a pair of compasses only, construct a triangle ABC such that AB=6cm; BC= 7cm and ∠ABC = 76½^o. Locate the region covered by the locus R, such that:
(a) AR ≥ ‘BR’
(b) ∠CAR ≤ ∠BAR
(c) AR ≤ 4.5cm

Date posted: August 19, 2019 . Answers (1)
Five members of ‘SILK’, a self supporting enterprise Jane, Jepchoge, Esther, Mama Charo and Chepkoech were given a certain amount of money to share amongst... (Solved)

Five members of ‘SILK’, a self supporting enterprise Jane, Jepchoge, Esther, Mama Charo and Chepkoech were given a certain amount of money to share amongst themselves. Jane got 3/8 of the total amount while Jepchoge got 2/5 of the remainder. The remaining amount was shared equally among Esther, Mama Charo and Chepkoech each of which received Kshs. 6,000;

(a) How much was shared among the five business women?
(b) How much did Jepchoge get?
(c) Jane, Jepchoge and Chepkoech invested their money and earned a profit of Kshs. 12,000. A third of the profit was left to maintain the business and the rest was shared according to their investments. Find how much each got.

Date posted: August 19, 2019 . Answers (1)
Msamaria bus leaves Butere for Nairobi at 7.00 am at an average speed of 80Km/h. Kukhu bus leaves Nairobi towards Butere at 7.30 am on... (Solved)

Msamaria bus leaves Butere for Nairobi at 7.00 am at an average speed of 80Km/h. Kukhu bus leaves Nairobi towards Butere at 7.30 am on the same day at an average speed of 60km/h. the distance from Nairobi to butere is 450km. after traveling for one and half hours; Kukhu bus developed a mechanical problem which took 45 minutes to repair before continuing at its speed in the same direction.
(a) Determine the time when the two buses met.
(b) Calculate the distance from Nairobi at the time of the two buses meeting.
(c) For how long did the Msamaria bus stay in Nairobi before Kukhu bus arrving at Butere.

Date posted: August 19, 2019 . Answers (1)
A salesman gets commission of 2% on sales upto shs. 100,000. He gets additional commission of 1½ % on sales above this. He sold goods... (Solved)

A salesman gets commission of 2% on sales up to shs. 100,000. He gets additional commission of 1½ % on sales above this. He sold goods and allowed a discount of 2%. If he received a commission of Sh. 5792 calculate the sales made.

Date posted: August 19, 2019 . Answers (1)
Solve for x in the following without using a calculator or mathematical tables. 9^x( 27^(x-1)) = tan 30^o (Solved)

Solve for x in the following without using a calculator or mathematical tables.
9^x( 27^(x-1)) = tan 30^o

Date posted: August 19, 2019 . Answers (1)
(a) Using a ruler and compasses only, construct triangle PQR in which QR=5cm,PR = 7cm and angle PRQ = 105^o (b) Measure PQ and Angle... (Solved)

(a) Using a ruler and compasses only, construct triangle PQR in which QR=5cm,PR = 7cm and angle PRQ = 105^o
(b) Measure PQ and Angle PQR
(c) From P drop a perpendicular to meet QR produced at S
(d) Mark a point T on SP produced such that the area of triangle TQR is half the area of triangle PQR.
(e) Complete the TQR and measure angle QRT
(f) measure ST and angle QTR

Date posted: August 19, 2019 . Answers (1)
Four strings measuring 12cm, 18cm, 24cm and 36cm are cut into pieces of equal length so that exact number of pieces are obtained from each... (Solved)

Four strings measuring 12cm, 18cm, 24cm and 36cm are cut into pieces of equal length so that exact number of pieces are obtained from each string without wastage. Find the longest length of each string.

Date posted: August 19, 2019 . Answers (1)
Three businessmen Onyango,Abdul and Mwangi decided to buy bus. The marked price of the bus was sh. 6,800,000. The dealers agreed that the three men... (Solved)

Three businessmen Onyango,Abdul and Mwangi decided to buy bus. The marked price of the bus was sh. 6,800,000. The dealers agreed that the three men could pay a deposit of 60% of the money and the rest to be paid within one year. Onyango, Abdul and Mwangi raised the deposit in the ration 3: 2 :5 respectively.
The balances was to be paid to the dealer from the proceeds from the bus in the same ratio as the deposits. The three men shared the proceeds from the bus in the ratio as the deposits. During the year the bus realized sh. 6,080,000
(a)How much of the deposit did Abdul contribute?
(b)How much of the remaining amount did Mwangi pay at the end of the year ?
(c)After paying the remaining amount at the end of the year, how much money was Onyango left with?

Date posted: August 19, 2019 . Answers (1)
On the figure below, Lm is parallel to PQ. Angle MLR = 30⁰ and angle RPQ = 70⁰. (Solved)

On the figure below, Lm is parallel to PQ. Angle MLR = 30⁰ and angle RPQ = 70⁰. Find the value of x.

Date posted: August 19, 2019 . Answers (1)
The marked price of a modern camera is Kes 24,000. A trader sold it to a customer at a 10% discount. (Solved)

The marked price of a modern camera is Kes 24,000. A trader sold it to a customer at a 10% discount. If the trader still made a profit of 20% on the cost price, what was its cost price?

Date posted: August 19, 2019 . Answers (1)
The figure below is a semi-cylindrical solid of length 18cm and radius 3.5cm as shown (Solved)

The figure below is a semi-cylindrical solid of length 18cm and radius 3.5cm as shown.

(a) Draw the labeled net of the solid.
(b) Find the surface area of the solid.

Date posted: August 19, 2019 . Answers (1)
The equation of a straight line L1 is given by 2y + 8x – 10 = 0. (Solved)

The equation of a straight line L1 is given by 2y + 8x – 10 = 0. Another line L2 cuts L1 at right angles such that the point of intersection of the two lines has coordinates (-3, k).
(a) Find the value of k.
(b) Hence find the equation of L2.

Date posted: August 19, 2019 . Answers (1)
A tower is on a bearing of 030^o from a point P and a distance of 100 m. From P, the angle of elevation of... (Solved)

A tower is on a bearing of 030^o from a point P and a distance of 100 m. From P, the angle of elevation of the top of the tower is 15^o and the angle of depression of the foot of the tower is 1.
(a) Find the height of tower.
(b) A point Q is on the same horizontal plane as point P. The tower is on a bearing 330^o from Q and a distance of 70 m.
Calculate the:-
(i) Bearing of Q from the tower.
(ii) The distance from P to Q
(iii) bearing of P from Q.

Date posted: August 19, 2019 . Answers (1)
The figure below shows two circles with centres O1 and O2 and intersecting at A and B.Angles AO1B = 60^o, AO2B = 80^o, AO1 =... (Solved)

The figure below shows two circles with centres O1 and O2 and intersecting at A and B.Angles AO1B = 60^o, AO2B = 80^o, AO1 = O1B = 8cm

Calculate
(a) AB
(b) AO2
(c) Area of the shaded region.

Date posted: August 19, 2019 . Answers (1)
(a) A curve whose equation is in the form y = mx³ - nx where m and n are constants passes through the point (1,... (Solved)

(a) A curve whose equation is in the form y = mx³ - nx where m and n are constants passes through the point (1, 2). Its gradient at the given point is 10. Find the values of m and n.

(b) Use the trapezium rule to find the area bounded by the curve y = x² + 4, the x-axis and the lines
x = 0 and x = 4. Use five ordinates.

(c) Calculate the exact area bounded by the curve, y = x² + 4, the x-axis and the lines x = 0 and x = 4. Hence find the percentage error in (b) above.

Date posted: August 19, 2019 . Answers (1)
One interior angle of a polygon is equal to 80° and each of the other interior angles are 128° (Solved)

One interior angle of a polygon is equal to 80° and each of the other interior angles are 128°. Find the number of sides of the polygon.

Date posted: August 19, 2019 . Answers (1)
Using a pair of compasses and a ruler only construct a triangle ABC such that AB = 6cm, BC = 8cm (Solved)

(a) Using a pair of compasses and a ruler only construct a triangle ABC such that AB = 6cm, BC = 8cm and ABC = 135°.
(b) Construct the height of triangle ABC in (a) above taking BC as the base and measure the height.

Date posted: August 19, 2019 . Answers (1)
(i) Express 48 and 6 0 as a product of their prime factors. (ii) A rectangle of side 48cm by 60cm is divided into squares... (Solved)

(i) Express 48 and 60 as a product of their prime factors.
(ii) A rectangle of side 48cm by 60cm is divided into squares of side X cm.Find the greatest value of X.

Date posted: August 19, 2019 . Answers (1)
The coordinates of P and Q are P(5, 1) and Q(11, 4) point M divides line PQ in the ratio 2 : 1. (Solved)

The coordinates of P and Q are P(5, 1) and Q(11, 4) point M divides line PQ in the ratio 2 : 1. Find the magnitude of vector OM.

Date posted: August 19, 2019 . Answers (1)
A translation maps triangle ABC onto A1B1C1, where A(1,-1), B( 3, 1) C ( 3,1) and C1 ( -1, 3).Find the coordinates of A1 and... (Solved)

A translation maps triangle ABC onto A1B1C1, where A(1,-1), B( 3, 1) C ( 3,1) and C1 ( -1, 3).Find the coordinates of A1 and B1.

Date posted: August 19, 2019 . Answers (1)
