The figure below shows a model of a solid in the shape of a frustum of a cone with a hemispherical top.

The figure below shows a model of a solid in the shape of a frustum of a cone with a hemispherical top.

The diameter of the hemispherical top is 70cm and is equal to the diameter of the top of the frustum. The
frustum has a base diameter of 28cm and a slant height of 60cm.
(a) Calculate the area of the hemispherical surface.
(b) Calculate the slant height of the cone from which the frustum was cut.
(c) Calculate the total surface area of the model

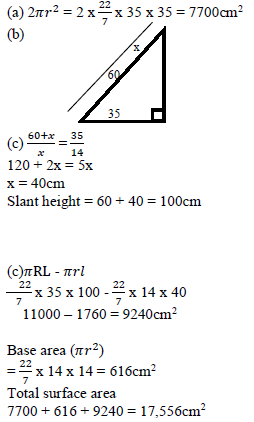

Answers

Wilfykil answered the question on September 6, 2019 at 06:02
