A quadrilateral ABCD has the coordinates A (1,1), B(4,1), C(5,3) and D(2,3)



A quadrilateral ABCD has the coordinates A (1,1), B(4,1), C(5,3) and D(2,3).

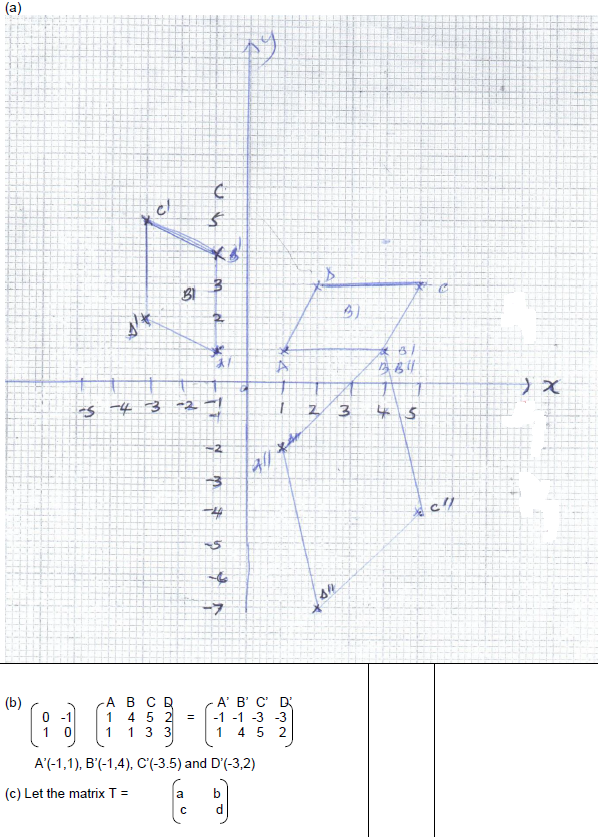

(a) On the graph provided draw the quadrilateral ABCD.

(b) AIBICIDI is the image of ABCD under a transformation matrix represented by: q2310920191003.png
write down the coordinates of AIBICIDI and on the same grid draw quadrilateral AIBICIDI.

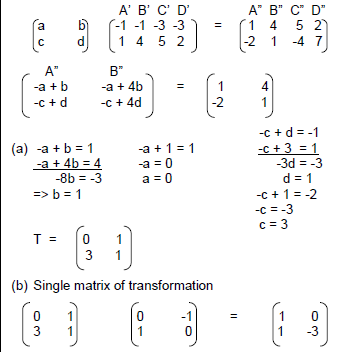

(c) AIIBIICIIDII with coordinates AII(1,-2), BII(4,1), CII(5,-4), DII(2,-7) is the image of AIBICIDI under transformation whose matrix is T. Find matrix T.

(d)
(i) On the same grid, draw quadrilateral AIIBIICIIDII.
(ii) A single transformation matrix K maps ABCD onto AIIBIICIIDII. Determine the matrix K.



Answers


Wilfred
Wilfykil answered the question on September 10, 2019 at 07:12
