Use a ruler and compass ONLY for all constructions in this question.
(a)Construct a triangle ABC in which AB=6 cm, BC= 7 cm and angle ABC = 750.
(b)Measure
(i)the length of AC
(ii)the angle ACB
(c)(i)Construct the locus of p such that BP = PC
(ii)Construct the locus of Q such that Q is on the opposite side of BC as A and angle
BCQ = 300.
(d)(i)the locus of P and Q meet at X, mark X .
(ii)Construct the locus of R in which angle BRC = 1200.

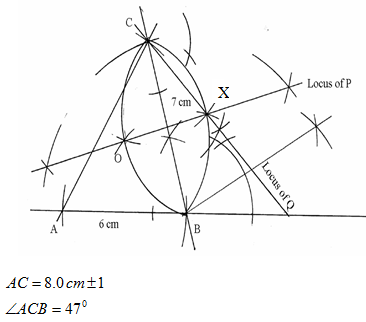

Answers


Kavungya
Kavungya answered the question on September 16, 2019 at 11:46
