The figure below shows cuboids ABCDEFGH. Given that AB=12 cm, BC= 8 cm and BF=4 cm. (a)State the projection of AG on the plane EFGH. (b)Determine the...



The figure below shows cuboids ABCDEFGH. Given that AB=12 cm, BC= 8 cm and BF=4 cm.

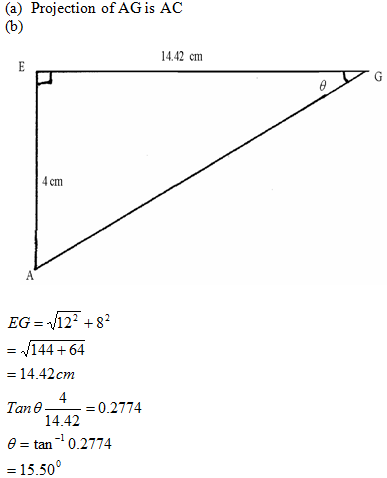

(a)State the projection of AG on the plane EFGH.
(b)Determine the angle between the line AG and the Plane EFGH.

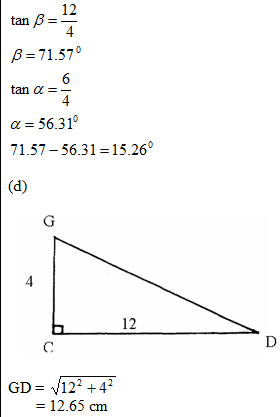

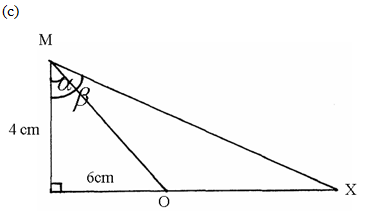

(c)Given that L! M and N are the mid points DC, FG and AB respectively, determine the angle between the planes ADM and NLM.

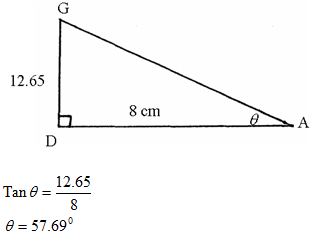

(d)Find the angle between the skew lines AG and BC.



Answers

---

---

Kavungya answered the question on September 16, 2019 at 12:40
