a)The range of a moving iron instrument of resistance 8 ohms is extended by using a shunt resistor of 0.04 ohm. If the full scale...

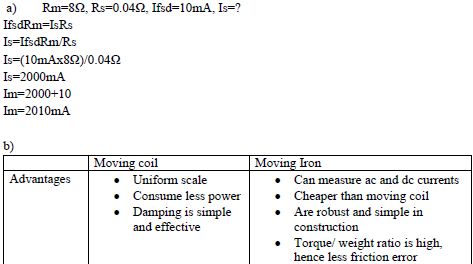

a)The range of a moving iron instrument of resistance 8 ohms is extended by using a shunt resistor of 0.04 ohm. If the full scale deflection current is 10mA, determine the maximum current that the modified instrument can measure.

b) State two advantages and two disadvantages of the moving iron instrument over moving coil instrument



Answers

---

---

marto answered the question on September 18, 2019 at 07:17
