A block of wood of mass 80kg floats in water with 0.6 of its volume in water. Calculate the number of rods each 20g that...

A block of wood of mass 80kg floats in water with 0.6 of its volume in water. Calculate the number of rods each 20g that can be placed on the block so that its top is level with the surface of water.

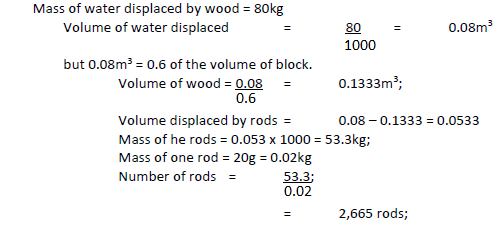

Answers

sharon kalunda answered the question on September 27, 2019 at 08:46

Answer Attachments

Next: State the Precautions that a drawer can take in order to ensure that his cheques do not bounce.

Previous: The figure below shows a metal rod AB of length 2m horizontally balanced while supported by a pivot and a string.
