In figure below the current in the circuit is 1.80A (i)Find the effective resistance between X and Y. (ii)The p.d of the source. (iii)Current through the 3? resistor



In figure below the current in the circuit is 1.80A
(i)Find the effective resistance between X and Y.
(ii)The p.d of the source.
(iii)Current through the 3Ω resistor

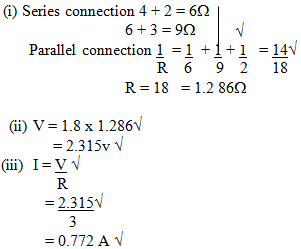

Answers


Kavungya
Kavungya answered the question on October 3, 2019 at 06:07
