The figure below shows a transverse pulley systems.
The wheels have radius 15cm and 10cm respectively. If O1X=30cm and XO2 =20cm
Calculate:
(a) AO1C
(b) DO2F
(c) Length AD to 4 decimal places
(d) Length BE
(e) Length of arc ABC and BEF.
(f) The length of the belt

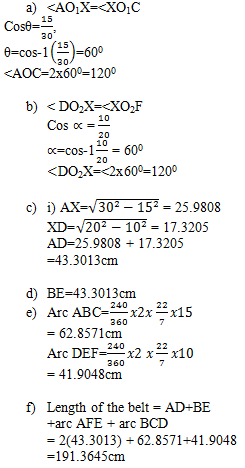

Answers


Kavungya
Kavungya answered the question on November 2, 2019 at 06:24
