The figure below shows frustrum ABCDEFH of a right pyramid. AB = 24cm, BC = 10cm, FG = 18cm, GH=7.5cm and AF = BG =...



The figure below shows frustrum ABCDEFH of a right pyramid. AB = 24cm, BC = 10cm, FG = 18cm, GH=7.5cm and AF = BG = CH = DE = 15cm.
Determine.

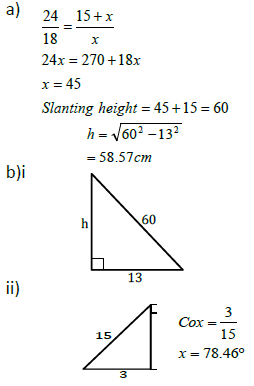

a) The altitude of the pyramid.
b) The angle between:
i) AF and the base ABCD

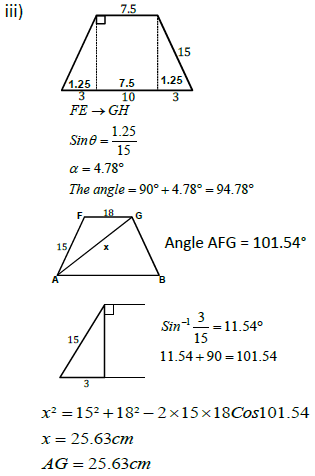

ii) FE and GB
c) The distance AG



Answers


Kavungya
Kavungya answered the question on November 7, 2019 at 06:49
