(a) On the Cartesian plane below, draw the quadrilateral PQRS with vertices P(4,6), Q(6,3), R(4,4), and S(2,3) (b) Draw P'Q'R'S' the image of PQRS under the...



(a) On the Cartesian plane below, draw the quadrilateral PQRS with vertices P(4,6), Q(6,3), R(4,4), and S(2,3)

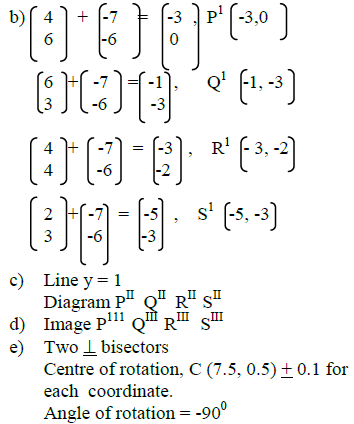

(b) Draw P′Q′R′S′ the image of PQRS under the transformation defined by the translation vector fig30131120191422.png Write down the coordinates of P′Q′R′S′.
(c) P′′Q′′R′′S′′ is the image of P′Q′R′S′ when reflected in the line y = 1. On the same plane, draw P′′Q′′R′′S′′.
(d) Draw P′′′Q′′′R′′′S′′′ the image P′′Q′′R′′S′′ when reflected in the line y – x = 0
(e) Find by construction, the centre of the rotation that maps P′′′Q′′′R′′′S′′′ onto PQRS and hence determine the coordinates of the centre of the rotation and the angle of the rotation.



Answers


Kavungya

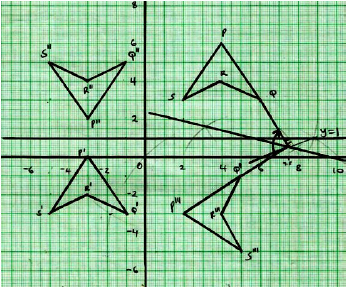

a) fig31131120191423.png
Kavungya answered the question on November 13, 2019 at 11:27
