The figure below shows a pulley system being used to raise a load.



The figure below shows a pulley system being used to raise a load.
This pulley system has an efficiency of 75%.
(i) Determine the velocity ratio of the system.
(ii) Determine the mechanical advantage of the pulley system.
(iii) Determine the effort required to raise a load of 240kg.
(iv) Determine the work done by a person using this machine in raising a load of 120kg through a vertical distance of 2.5m

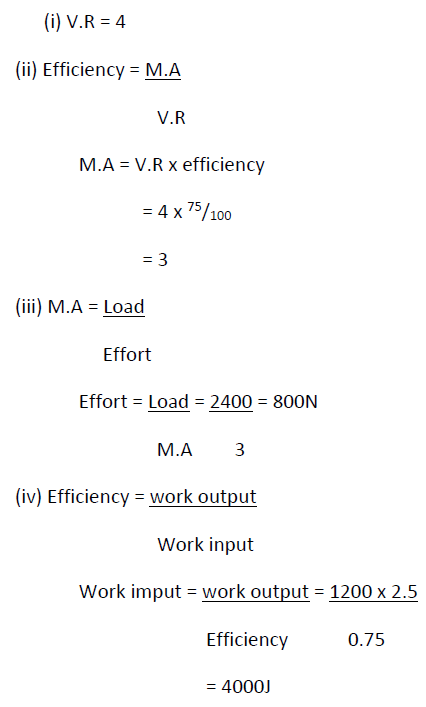

Answers


Maurice
maurice.mutuku answered the question on November 22, 2019 at 09:17
