Four resistors are connected as shown in figure below. (a) Find the equivalent resistance between points a and c. (b) What is the current in each resistor...



Four resistors are connected as shown in figure below.

(a) Find the equivalent resistance between points a and c.
(b) What is the current in each resistor if a potential difference of 42 V is maintained between a and c ?

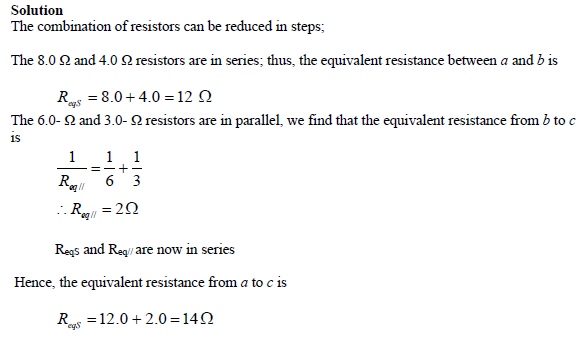

Answers

---

---

Kavungya answered the question on May 11, 2021 at 06:57

Next: Consider five resistors connected as shown in figure below. Find the equivalent resistance between points a and b.
Previous: Explain the difference between load resistance in a circuit and internal resistance in a battery.

View More Electricity and Magnetism I Questions and Answers | Return to Questions Index
