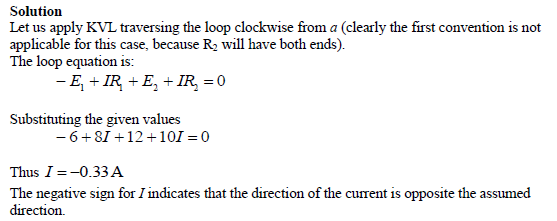

Find the current I in the circuit of the figure below.

Answers

Kavungya answered the question on May 11, 2021 at 07:20

Next: State Kirchhoff’s Laws, and for each present the sign convention.
Previous: Find the currents l1, l2, and l3 in the circuit shown in figure below.

View More Electricity and Magnetism I Questions and Answers | Return to Questions Index

Exams With Marking Schemes

Related Questions

State Kirchhoff’s Laws, and for each present the sign convention.(Solved)
State Kirchhoff’s Laws, and for each present the sign convention.

Date posted: May 11, 2021. Answers (1)
A galvanometer with an internal resistance of 5O has a maximum scale deflection when a current of 20 mA is flowing through it. Explain showing all...(Solved)
A galvanometer with an internal resistance of 5Ω has a maximum scale deflection when a
current of 20 mA is flowing through it. Explain showing all your calculation how you can
convert it into:
(a) A voltmeter with full scale deflection of 15V.
(b) An ammeter with a full scale deflection of 10A.

Date posted: May 11, 2021. Answers (1)
The terminal p.d of a battery is 12 V when an external resistance of 20 O is connected and 13.5 V when an external resistance...(Solved)
The terminal p.d of a battery is 12 V when an external resistance of 20 Ω is connected and 13.5 V when an external resistance of 45 Ω is connected. Calculate the emf and internal resistance of the battery.

Date posted: May 11, 2021. Answers (1)
A battery of emf 40 V and internal resistance 5 O is connected to a resistance of 15 O. Calculate the terminal p.d(Solved)
A battery of emf 40 V and internal resistance 5 Ω is connected to a resistance of 15 Ω.
Calculate the terminal p.d.

Date posted: May 11, 2021. Answers (1)

A cell of unknown emf E and internal resistance 2 O is connected to a 5 O resistance. If the terminal p.d V is 1.0...(Solved)
A cell of unknown emf E and internal resistance 2 Ω is connected to a 5 Ω resistance. If the terminal p.d V is 1.0 V, calculate E.

Date posted: May 11, 2021. Answers (1)
Explain the difference between load resistance in a circuit and internal resistance in a battery.(Solved)
Explain the difference between load resistance in a circuit and internal resistance in a battery.

Date posted: May 11, 2021. Answers (1)
Four resistors are connected as shown in figure below. (a) Find the equivalent resistance between points a and c. (b) What is the current in each resistor...(Solved)
Four resistors are connected as shown in figure below.

(a) Find the equivalent resistance between points a and c.
(b) What is the current in each resistor if a potential difference of 42 V is maintained between a and c ?

Date posted: May 11, 2021. Answers (1)
Consider five resistors connected as shown in figure below. Find the equivalent resistance between points a and b.(Solved)
Consider five resistors connected as shown in figure below. Find the equivalent resistance between points a and b.

Date posted: May 11, 2021. Answers (1)

A steel wire of cross-sectional area of 25cm² and resistivity of 1.0 x 10^-7Om. Evaluate the resistance of 1m of the wire.(Solved)
A steel wire of cross-sectional area of 25cm² and resistivity of 1.0 x 10^-7Ωm. Evaluate the
resistance of 1m of the wire.

Date posted: May 11, 2021. Answers (1)
What is the relationship between resistance and resistivity?(Solved)
What is the relationship between resistance and resistivity?

Date posted: May 11, 2021. Answers (1)
Define current density and show how it is related to drift velocity.(Solved)
Define current density and show how it is related to drift velocity.

Date posted: May 11, 2021. Answers (1)
A copper wire in a typical residential building has a cross-sectional area of 3.31 x 10^-6 m² has 8.94 x 10²⁸ electrons/m³. If it carries a...(Solved)
A copper wire in a typical residential building has a cross-sectional area of 3.31 x 10^-6 m² has
8.94 x 10²⁸ electrons/m³. If it carries a current of 10.0 A, what is the drift speed of the electrons?

Date posted: May 11, 2021. Answers (1)
Explain what drift velocity is.(Solved)
Explain what drift velocity is.

Date posted: May 11, 2021. Answers (1)
In a typical lightning bolt, a current of 2.5 x 10⁴ A exists for 20 µs. How much charge is transferred in this event?(Solved)
In a typical lightning bolt, a current of 2.5 x 10⁴ A exists for 20 μs. How much charge is transferred in this event?

Date posted: May 11, 2021. Answers (1)
The current in a wire is 0.80 A. How long does it take 1.60 C to pass through a point in the wire?(Solved)
The current in a wire is 0.80 A. How long does it take 1.60 C to pass through a point in the wire?

Date posted: May 11, 2021. Answers (1)
